Batadv-vis

batadv-vis can be used to visualize your batman-adv mesh network. It read the neighbor information and local client table and distributes this information via alfred in the network. By gathering this local information, any vis node can get the whole picture of the network.

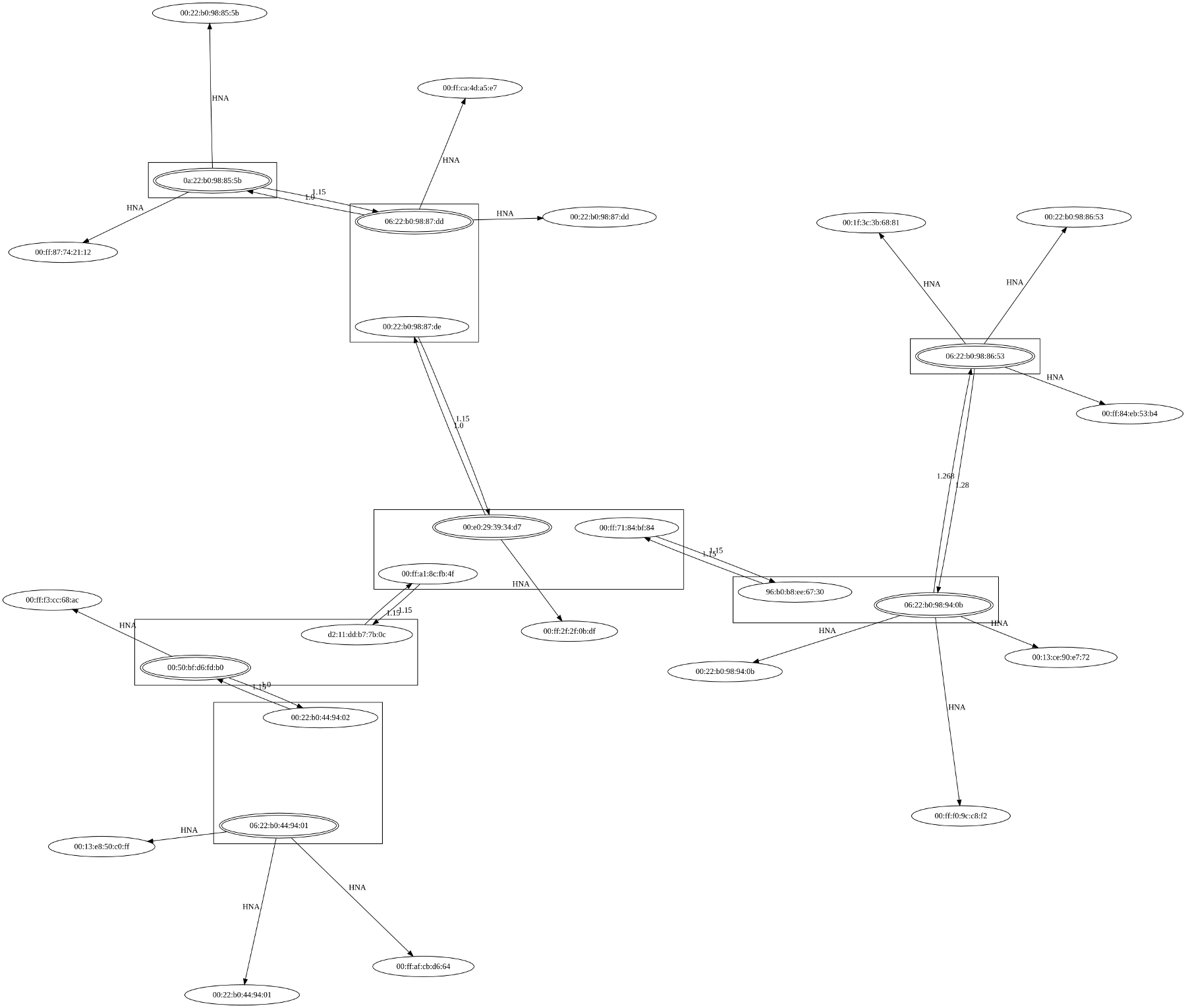

It allows output of different formats (json, graphviz) and replaces the in-kernel vis functionality found in older batman-adv kernel modules (<2014). See the sample picture below. For more information, please read the vis section of the README or the manpage for usage.

batman-adv-vis-example.dot (2.23 KB) Simon Wunderlich, 08/13/2015 08:03 PM

batman-adv-vis-example.png View (249 KB) Simon Wunderlich, 08/13/2015 08:03 PM
