OpenWrt in QEMU

The simple emulation architecture can be implemented rather easily using qemu and an x86_64 image from OpenWrt.

OpenWrt preparation

It is possible to just use an x86_64 which was downloaded from OpenWrt's servers. But it is highly recommended to build an own image which:

  • enables the routing protocols (like batman-adv) from the openwrt-routing feed.
  • enables the 9p filesystem (and virtio)
  • integrates its own startup scripts (for automatic test initialization and shared path support) via files/etc/rc.local
    mkdir -p files/etc/
    cat > files/etc/rc.local << "EOF"
    mkdir -p /host
    mount -t 9p host /host
    [ ! -x /host/ ] || /host/

The shared path is a folder from the host system which is mapped via 9p into all virtual instances. It can be used to exchange files between the instances and the host.

The openwrt build result openwrt-x86-64-combined-ext4.img.gz has to be extracted and copied to the path with the other scripts.

Start scripts for the simple environment

The virtual instances and the virtual network will be started using a set of simple scripts. This simplifies everything and makes the setup more reproducible.

virtual network initialization

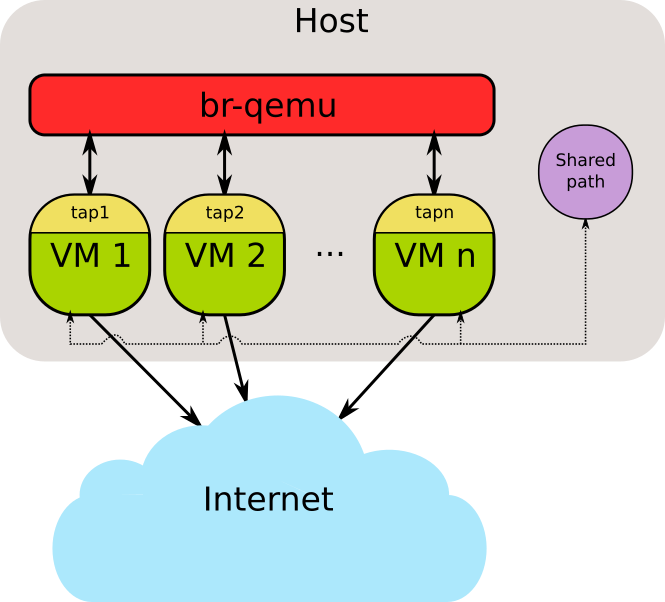

The virtual network (bridge br-qemu with 3 tap devices) has to be started first to have a simple network. All devices in this virtual network can talk to each other - which is not optimal for tests but enough for a start. More complex network setups can be on the pages vde switch virtual network and Advanced Bridge virtual network.

The tap interfaces will be created with access rights for the current user. This allows the qemu instance to start up without being root.

cat > << "EOF"
#! /bin/sh


sudo ip link add "${BRIDGE}" type bridge
for i in $(seq 1 "${NUM_SESSIONS}"); do
        sudo ip tuntap add dev tap$i mode tap user "$USER"
        sudo ip link set tap$i up
        sudo ip link set tap$i master "${BRIDGE}"

sudo ip link set "${BRIDGE}" up
sudo ip addr replace dev "${BRIDGE}"

chmod +x

VM instances bringup

Each instance will need to write to the provided image. If the same image is specified as drive for each instance then writes to this file would conflict and data corruption be the result. To avoid this, each instance gets its own (copy on write) snapshot of the base image.

The three node environment must be started inside a screen session. Each instance will end up in an own screen window. This allows access to the serial console of each instance while having each instance's output separated from each other.

The qemu instance is started in a rather specific way to enable all features which might be needed during the test:

  • KVM is enabled to speed up the virtual instances (by avoiding slow emulation as much as possible)
  • no graphic display is activated
  • serial output is enabled for kernel output and login shell
  • 2 core SMP is activated to better see effects of multicore systems
  • 512 MB RAM is provided to the virtual instance (KSM should be activated in setups with larger number of virtual instances)
  • a NIC is connected to the tap interface (from the virtual network) to transport mesh (and other) traffic
  • a user NIC is created to transport (NAT'ed) traffic to/from the internet
  • a shared path from host is provided for the client
  • the qemu gdb server is enabled to allow kernel debugging

The SHARED_PATH in has to be changed to a valid path which is used to share things like a precompiled batman-adv.ko and other tools

cat > << "EOF"
#! /bin/bash


if [ -z "${STY}" ]; then
    echo "must be started inside a screen session" >&2
    exit 1


## OpenWrt in QEMU
BOOTARGS+=("-serial" "chardev:charconsole0")

## Kernel hacking Debian image
#BOOTARGS+=("-bios" "qboot/build/bios.bin")
#BOOTARGS+=("-kernel" "linux-next/arch/x86/boot/bzImage")
#BOOTARGS+=("-append" "root=/dev/sda rw console=hvc0 nokaslr tsc=reliable no_timer_check noreplace-smp rootfstype=ext4 rcupdate.rcu_expedited=1 reboot=t pci=lastbus=0 i8042.dumbkbd=1 i8042.nopnp=1 i8042.noaux=1 no_hash_pointers")
#BOOTARGS+=("-device" "virtconsole,chardev=charconsole0,id=console0")

for i in $(seq 1 "${NUM_SESSIONS}"); do
    if [ ! -e "/sys/class/net/tap${i}" ]; then
        echo "hub script must be started first to create tap$i interface" >&2
        exit 1

for i in $(seq 1 "${NUM_SESSIONS}"); do
    normalized_id="$(echo "$i"|awk '{ printf "%02d\n",$1 }')"
    twodigit_id="$(echo $i|awk '{ printf "%02X", $1 }')"

    qemu-img create -b "${BASE_IMG}" -f qcow2 -F qcow2 root.cow$i
    screen qemu-system-x86_64 -enable-kvm -name "instance${i}" \
        -display none -no-user-config -nodefaults \
        -m 512M,maxmem=2G,slots=2 -device virtio-balloon \
        -cpu host -smp 2 -machine q35,accel=kvm,usb=off,dump-guest-core=off \
        -device virtio-scsi-pci \
        -device scsi-hd,drive=drive0 \
        -drive file=root.cow$i,if=none,id=drive0,cache=unsafe,discard=unmap \
        -nic tap,ifname=tap$i,script=no,downscript=no,model=virtio,mac=02:ba:de:af:fe:"${twodigit_id}" \
        -nic user,model=virtio,mac=06:ba:de:af:fe:"${twodigit_id}" \
        -virtfs local,path="${SHARED_PATH}",security_model=none,mount_tag=host \
        -gdb tcp:$((23000+$i)) \
        -device virtio-rng \
        -device virtio-serial,id=virtio-serial \
        -chardev stdio,id=charconsole0,mux=on,signal=off -mon chardev=charconsole0,mode=readline \
    sleep 1

chmod +x

Automatic test initialization

The script in the SHARED_PATH can be used to automatically initialize the test setup during boot. A simple example is:

cat > << "EOF"
#! /bin/sh

set -e

## Simple batman-adv setup

rmmod batman-adv || true
modprobe batman-adv
batctl routing_algo BATMAN_IV
batctl if add eth0
batctl it 5000
ip link set up dev eth0
ip link set up dev bat0

chmod +x


Everything can then be started up inside a screen session
