RIP Protocol (Rest in Peace)

The original idea from Linus has been discussed and enhanced by an international committee in December 2011 ... in a pub in Berlin while drinking some nice beer :) The draft presented here may therefore be incomplete, ideas and volunteers for implementation welcome!

Background

The new OGM protocol in BATMAN V is designed to send OGMs at much lower regular intervals than BATMAN IV, because we split the local link detection part off into ELP. The general idea is to reduce overhead of messages flooded through the network. The disadvantage is that reaction to link failures will also become slower. This RIP protocol (maybe we need a better name?) is designed to react to drastic link changes or outages. It is an extension to the new OGM protocol and works (only) along with it.

Algorithm Idea

We discuss the situation at an example:

Situation

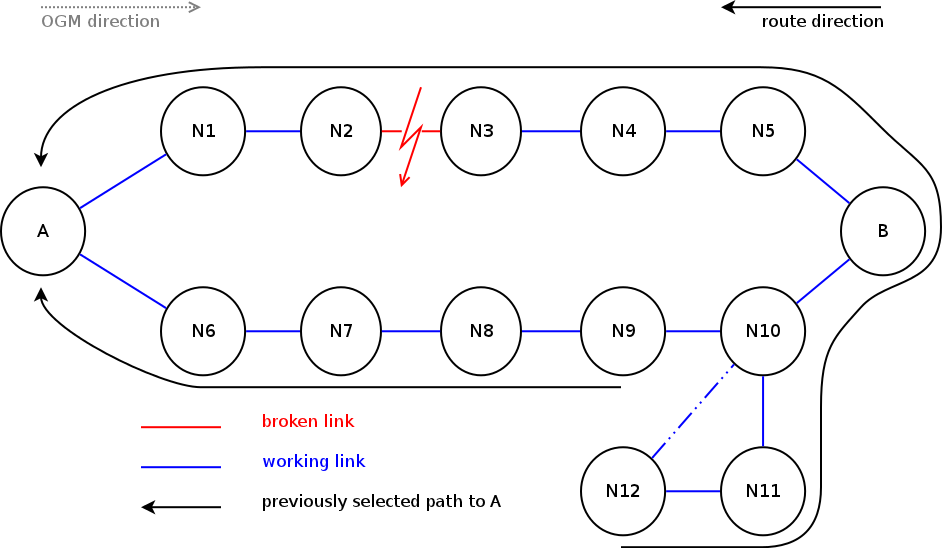

The link between the nodes N2 and N3 suddenly breaks. Unfortunately, this was the route packets where taking on their way from node B to node A. We now could wait until OGMs are flooded on the alternative path to B (or even N3) and replace the (now broken) path. With the new OGM protocol and intervals of 5-10 seconds, this can take some time. On the other hand, ELP sends messages much more often and can detect the link change fast - locally. The task is to globally inform the mesh about the changed situation.

Death Notes

N3 will detect that the link to node N2 through ELP. This does not necessarily lead to route deletion directly, as we may reach many Originators through this link (A, N1, N2, ...). As soon as we receive a frame on N3 which is to be sent over this link (e.g. B->A), we broadcast a death note for OGM A. This death note means that N3 can no longer serve as router for A. We also delete our stored router for this Originator.

All nodes who receive the death note and had chosen the sender as router will know that their route is now invalid. In our example, N4 will know that it can not reach A via N3 anymore. A node who receives this message and had the sender chosen as router will also delete its routing entry and will broadcast the death note again - other nodes in their proximity will also know that this node can not serve as a router anymore. In our example, N4 will broadcast the death note too and delete its routing entry. N5 will get the death note, delete the route, and broadcast a death note. B will receive the death note from N5 and does the same.

OGM Update Request

At some point, other nodes will also receive the death note who have a still working path towards A (or at least believe so). In our example, N9 will receive the death note from N10, but it does not use N10 as router for A - the selected router is N8. In the case that it (still) has a route to A, so it will send an OGM Update Request via Unicast to its router N8 with final destination A. OGM Update requests are simply passed from node to node until they reach their final destination A. As soon as A receives this OGM Update Request, it will immediately broadcast a new OGM with a new sequence number.

Back Propagation

The new OGM from A will be flooded as usual through the mesh. It gets interesting for the nodes who had previously lost their route (N3, N4, N5, N10, N11, N12 and B): They can immediately acquire a new, valid (but maybe suboptimal) route to A, as they have previously deleted their selected route, and thus can get communication working again promptly.

Discussion

From the algorithm sketch, we can see:

  • we can promptly react to link outages - as soon as ELP (or some other underlying mechanisms) detects it.
  • the death notes are broadcasted only through the affected part of the mesh. Outside nodes use Unicast to reach the Originator - this saves bandwidth
  • we can keep long originator interval and still react to changes fast - at least negative ones.
  • Remark from me/Linus: Deleting the routes (meaning forgetting about the last seqno+metric?) via the death notes can cause routing loops, if a late OGM arrives at N3 via yet another alternative path, I think. Alternative, safer suggestion: Mark entry as "undead", meaning to decrease the OGM_MAX_ORIG_DIFF for this specific entry to 1 until it gets updated.
  • The name is awesome, fitting and easy to remember. However, there actually exists a prominent distance vector routing protocol with the same name. Should we change it, for the same reason we changed NDP to ELP? (if yes, a suggestion: BATSIG - BATMAN Sequence number Increment Generator; in reference to the bat signal which Gordon might use after looking at a dead, mutilated body)

Death Note packet format

Death Notes and OGM Update Requests may share a packet type and be distinguished by a flag. They basicly contain:

  • the affected Originator Address (either used as subject of the death note or final destination)
  • TTL
  • (maybe?) last valid OGM

Optimization Ideas

  • we may also send the last valid OGM from a node which is not affected by a death note - but only after making sure that the connection to the destination still works (e.g. by using a ping). This would require some more state to be saved.
