Fragmentation

To transport packets through the mesh network, batman-adv prepends its own header to packets entering the mesh. Since clients and other sources of packet don't know about this additional header, packets are often optimized for the usual MTU of 1500 bytes, meaning that the additional header increases the size to e.g. 1528 bytes. To handle this, batman-adv recommends users to increase the MTU of the wireless interface to at least 1528 bytes. However, some drivers/hardware don't support an MTU larger than 1500 bytes, or batman-adv might need to transmit big protocol packets, and for this we need fragmentation.

Protocol Header

The fragment header contains several fields:
  • Batman-adv common header
    Compatibility version, packet type, and time-to-live
  • Destination
    Used to route fragments if it wouldn't make sense to merge them. (E.g. when the merged packet larger than the intermediate MTU and thus would be fragmented again anyways.)
  • Originator
    Used to group fragments in the buffer. This and the sequence number makes the original packet identifiable.
  • Fragment number
    Used to sort the fragments before merging them.
  • Sequence number
    Used to identify the group of fragments.
  • Total size
    Used to determine whether a fragment should be merged before forwarding and also to determine if all fragments are received.

Creating Fragments

Any type of unicast packet (e.g. struct unicast_packet, struct tt_response, struct vis_packet, etc) can be fragmented.

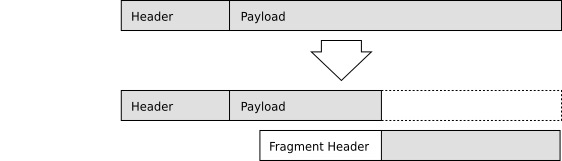

The size is checked in send_skb_to_orig() and if larger than the MTU of the selected outgoing interface (selected by bonding) the packet is passed to frag_send_packet(). Here, fragments are created and sent from the tail of the original packet, so that the first fragment contains the end of the original packet:

The first fragment is passed to send_skb_packet() to be transmitted and if the size of the remaining part of the original packet is also larger than the MTU, another fragment is created:

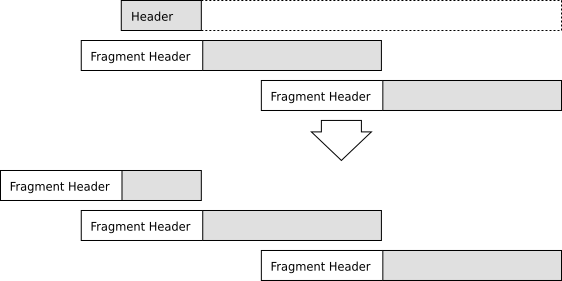

Now the remaining part is small enough to transmit in one piece, so the fragment header is added and the packet is passed to send_skb_packet():

These completes the creation of fragments.

Merging Fragments

Fragments are identified by the packet type in the batman-adv common header.

When receiving a fragment, it is passed to recv_frag_packet() in routing.c, where it is either forwarded, buffered, or merged. Merged packets are passed to the primary receive function again and processed by its original handler.

  1. Check total size
    If destination fields contains another originator and the size of the original packet is greater than the MTU, the fragment is forwarded without merging.
  2. Buffer fragment
    The fragment is buffered (in reverse order) in a list of fragments with equal sequence numbers from the same originator.
  3. Check for complete fragments
    If the accumulated size of the received fragments equals the total size given in the fragment header, the list moved out of the buffer and handed to the merge function.
  4. Merge fragments
    The first fragment in the list (which is the last fragment, see item no. 2) is expanded to contain the payload of the rest of the fragments, which are then copied into the first fragment.
  5. Handle original packet
    The merged packet is passed to batman_skb_recv() where it is processed as usual.

Configuration

First of all, fragmentation shouldn't be needed (except for tt-tables, see below). It is a fix for drivers/hardware that is unable to handle MTU's greater than 1528 bytes, it is slow (due to increase is packets), and is susceptible to packet loss.

It can be enabled and disabled in the sysfs file:

% echo 1 > /sys/class/net/bat0/mesh/fragmentation # enable (default)
% echo 0 > /sys/class/net/bat0/mesh/fragmentation # disable

or by using batctl:
% batctl f 1 # enable
% batctl f 0 # disable

Limitations

If an intermediate node with an unexpectedly lower MTU exists, this scheme breaks. In the scenario "A <-> B <-> C", where A and C have MTU=1550 and B has MTU=1000 bytes, B cannot respond with nor forward very-big-full-tables from A to C. At the moment, batman-adv simply forwards the requests and hopes for the best.

Future Improvements

  • Checking total size of original packet uses the MTU of the incoming interface. In case of bonding, the fragment might be transmitted on another interface.
  • The fragment buffer in struct orig_node should only be allocated on demand, as most networks don't need fragmentation.
