Hidden Node Problem

See here for a general description of the problem.

Hidden Node Problem and ELP/OGMs

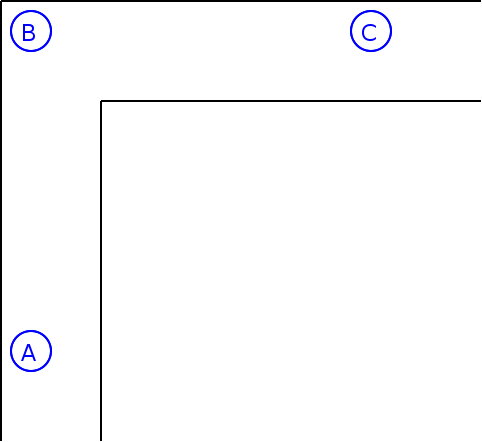

Especially in indoor scenarios like the one shown below where corners and thick walls are involved, hidden nodes can be a severe problem. Usually activating RTS/CTS is a common way of solving this problem at least to some degree. However, RTS/CTS can only be applied for unicast packets. Therefore a node C sending a lot of data packets to B, even with RTS/CTS those packets will interfere with BATMAN's broadcast packets (e.g. ELP packets or OGMs). The effect is, that with this stream, only the TQ from A -> B will decrease dramatically, the rest will stay relatively equal.

In the worst case, this can lead to route flapping to the shorter path, due to all these lost packets, A will switch its route towards C to the direct one if occasionally some ELP/OGMs had been received over this link, which might however not be usable for i.e. TCP traffic due to a too high packet loss.

Solution Proposal

In BATMAN-Adv. we have the possibility to control not only the routing protocols control packets (like ELP packets or OGMs), but also the data flow. Furthermore the period when a node is sending an ELP packet / OGM is relatively constant (+ some jitter), which allows finding a solution which does not need an active channel reserving like RTS/CTS. Roughly the following steps could be done to decrease the number of lost control packets in case of hidden nodes:
  • When sending an ELP packet, attach both the neighbor's ELP interval and the relative interval time offset. In other words, also add the amount of milliseconds when this node expects to receive the next ELP packet from this neighbor.
  • Any neighbor receiving an ELP packet with this new information then knows at which times sending data packets could result in collisions (due to e.g. hidden nodes).
  • A node then halts its unicast packet transmissions at these times.
    The benefit of this also is, that even if there was no hidden node problem in such a scenario, still a congested links (e.g. saturated bc. of many UDP packet transfers) could lead to switching to the unusable, direct link A - C. This solution also eliminates the influence of congestion on BATMAN's control packets.

topology-scheme.png View (5.74 KB) Linus Lüssing, 01/21/2011 10:47 AM
