alfred architecture

Introduction

alfred is a user space daemon for distributing arbitrary local information over the mesh/network in a decentralized fashion. This data can be anything which appears to be useful - originally designed to replace the batman-adv visualization (vis), you may distribute hostnames, phone books, administration information, DNS information, the local weather forecast ...

Typically, alfred runs as unix daemon in the background of the system. A user may insert information by using the alfred binary on the command line, or use custom written programs to communicate with alfred directly through unix sockets. Once the local data is received, the alfred daemon takes care of distributing this information to other alfred servers on other nodes somewhere in the network. As addressing scheme IPv6 link-local multicast addresses are used which do not require any manual configuration. A user can request data from alfred, and will receive the information available from all alfred servers in the network.

More user related information can be found in the alfred overview page.

Alfred specific terms

node a node is a device able to run alfred
server an alfred instance running on a node, able to communicate with alfred processes on other nodes and with clients running on the same node
client a program which supports the alfred protocol and communicates with the alfred server on the same node
master an alfred server process which stores incoming data, synchronizes it with other master servers and accepts requests/data from slaves
slave an alfred server process which only manages its own data, pushes/requests the data to/from its master server

Network

Structure

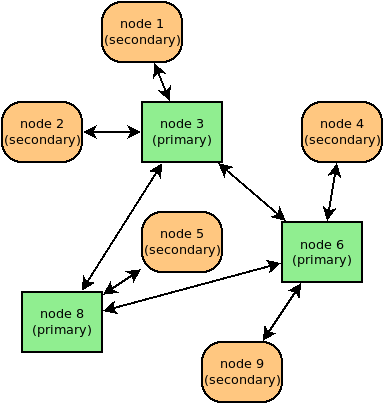

An alfred network used for exchanging data is built using different nodes running an alfred server. Servers are detected and connect to each other automatically.

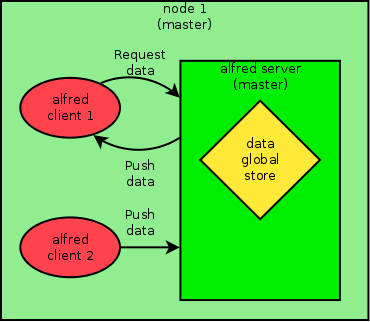

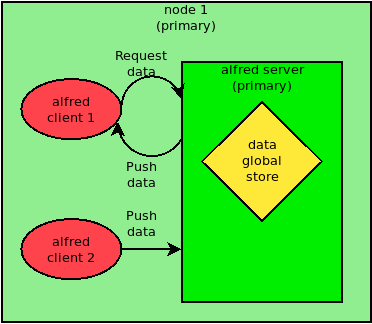

Such a network has to contain at least one master server. Master servers are used as global data storage and help to synchronize data with other nodes. This role is so important that they actively announce there presence to all nodes. Other master servers are automatically synchronizing their stored data to have it distributed to all reachable master nodes.

The second type of servers are slaves. Slaves don't try to gather all data stored in the alfred network. Instead they only connect to their best master server to request data when required and to push the data from local clients to the alfred network through master servers.

Network layer

All communication between servers in an alfred network is done through IPv6 link-local UDP messages. This only allows communication in the current subnet but messages will not be routed between different subnets.

The underlying layer can for example be batman-adv which makes all nodes in a mesh look like being connected to a big switch. This makes it possible to reach all nodes even in situations where they would not be able to reach each other through the actual link medium. Therefore, link-local messages are enough for this scenario. Deployments with a different kind of underlying layer may have to evaluate if they can provide a medium which also provides IPv6 link-local communication between all nodes.

All the messages are sent through the IANA unregistered UDP/IPv6 port 0x4242 (in decimal: 16962).

Detection of neighbors

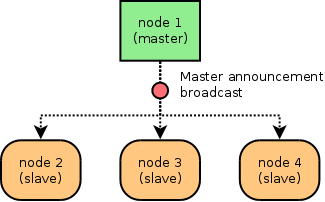

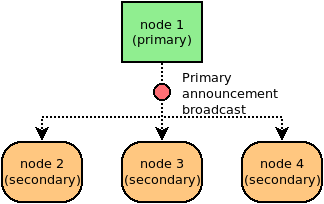

The master server will announce itself using IPv6 link-local multicast messages. This makes it possible to reach all nodes with a single message unless it is dropped while being forwarded/transmitted.

The periodically (10s) transmitted announcement multicast messages will be received by the other alfred servers and be store for later. Master servers use this information to synchronize data and slave servers use it to have access to the global data.

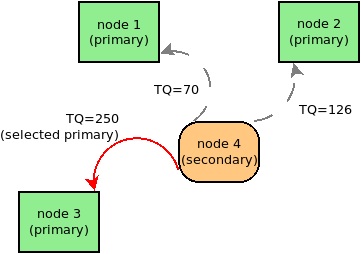

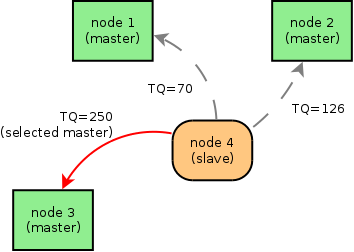

The slave servers need therefore a way to find their best master server. The current strategy for non-batman-adv server is to choose one server randomly and and don't use an extra metric. But batman-adv networks already provide the TQ value to quantify the quality to a master server. The best master server is just the server with the best TQ for a slave node.

The mac address is used by alfred to associate the messages with an unique data source. It is calculated by evaluating the received UDP/IPv6 packet source address. This mac address can then be used to retrieve the master server TQ from the batman-adv debug tables.

Detected neighbor servers are automatically dropped after a timeout of 60s since the last announcement was received.

Client data exchange

The client communication to the alfred server is done through unix sockets on the same node. The path is defined as /var/run/alfred.sock

The used packet format is shared between the server2server and the client2server communication. There are some minor differences which will be explained later.

The easiest communication is the push of data to an server. The client just has to create a alfred_push_data packet with the attached data at the end. The server receives it, stores it, closes the client connection and handles the forwarding of the data to the other servers in the alfred network.

Slightly more complicated is the request of data from a master server. The client has to send an alfred_request packet to the master server with the type it requests. The reply will be an arbitrary number of alfred_push_data packets of the requested type which contain the data set by the clients on this node and from other nodes. The data from other servers will only be as new as the latest successful data synchronization.

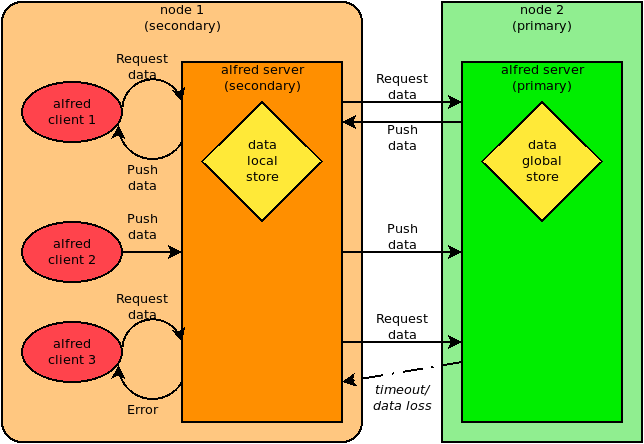

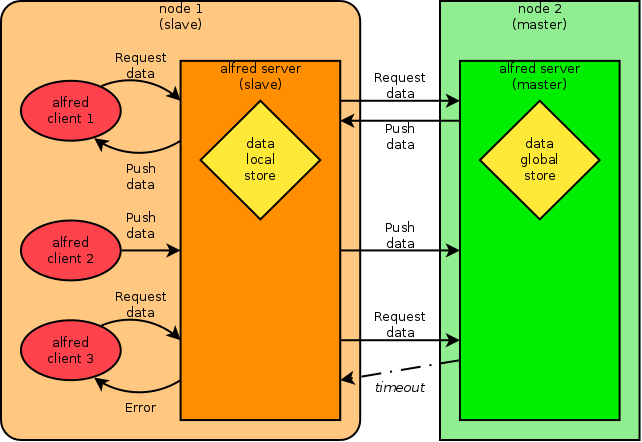

The alfred request to an slave server looks exactly the same as the request to a master server. But the slave server doesn't store all data which is currently in the alfred network. Instead the slave server has to ask its master server to send information for this type to the slave server. This is done the same way as a client would do it but through a link-local UDP/IPv6 message. The request will be replied by the server with alfred_push_data packets and a single alfred_status end packet containing the number of sent alfred_push_data packets.

This request can obviously fail for different reasons. The slave server uses an timeout (10s) for these requests and informs the client using an alfred_packet_status error message that the request failed. Otherwise the slave server will reply with alfred_push_data packets the same way as a master server.

The best practice for a client is to implement the handling of error messages even when it is only used together with master servers.

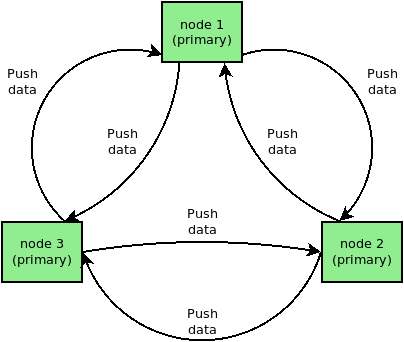

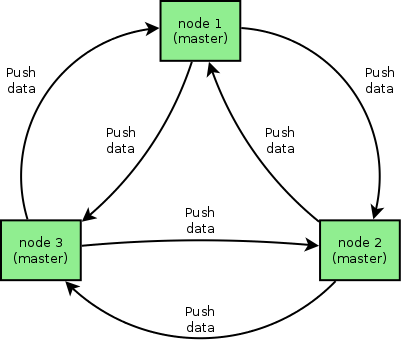

Synchronization

Data synchronizations are done master2master and slave2master. The slave will only send data from its clients to a single server. Master servers are sending their stored data to all other known master servers. This only contains the data from their local clients and data pushed from slave server.

The synchronization is started pro-actively by the slave or master server every 10s. It is initiated by an alfred_push_data packet with a transaction id and the first data blocks. This transaction id should be unique for the time of the synchronization but the same for all packets of a synchronization transaction.

The last packet is an alfred_status end packet with the number of sent alfred_push_data packets during this synchronization transaction. If it doesn't match with the number of packets the master server received, then the transaction failed and the remote master server drops the received data.

Data is automatically pruned from the server storage 600s after the last time it was received/refreshed.

Packet formats

General format

The data stored in the packet headers is always stored in network byte order (big endian). The packet format is TLV based (type, value, length) which appears in different headers. The type is only defined by alfred for the outer TLV and can be PUSH_DATA(0), ANNOUNCE_MASTER(1), REQUEST(2), STATUS_TXEND(3), STATUS_ERROR(4). The only special type is MODESWITCH(5) which is used internally to switch a server between master and slave mode.

The length value is always the length of the payload following the TLV. This is especially important when multiple TLV + payload blocks appear after each other.

The version field is also only defined for the outer TLV and has to be 0 for the specified first packet format.

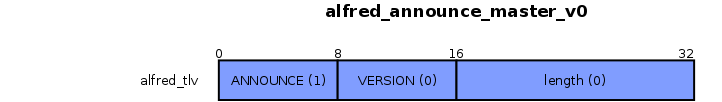

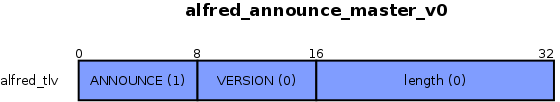

Master announcement

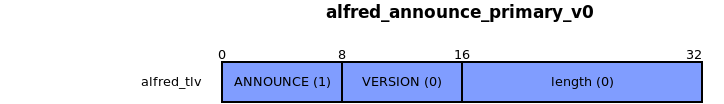

The announcement is only done by the master servers to announce themselves via link-local UDP/IPv6 multicast. It doesn't contain any more information. The receiver has to calculate the mac address of the sender by decoding the link-local IPv6 sender address.

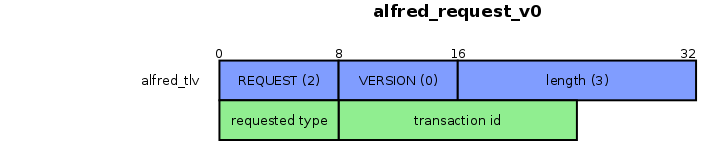

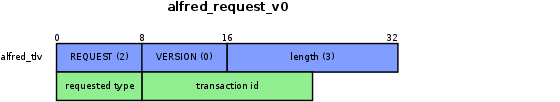

Request data

Requests are done by clients via unix socket or by slave servers via link-local UDP/IPv6 unicast.

The requested type is the type of data which the transmitter wants to receive. The alfred_push_data packets sent as reply must only contain data blocks from this type.

The transaction id must be unique during the time the request is made and answered.

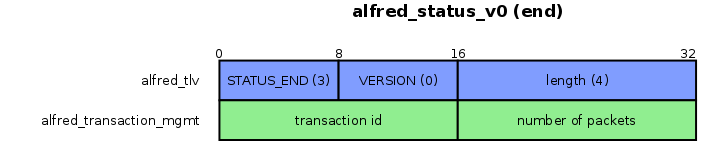

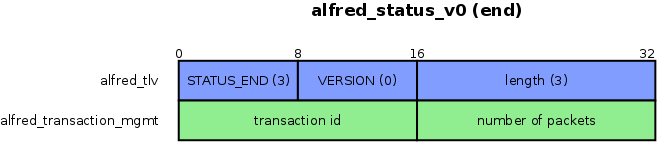

Finish transaction

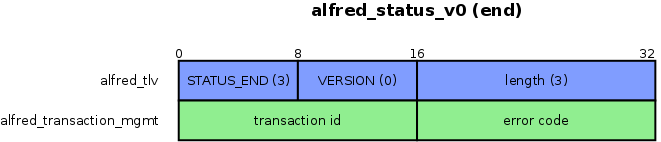

Servers send status end packets via link-local UDP/IPv6 unicast. It is the last packet of a transaction (synchronization or reply to a request). The transaction id has to be equal to the transaction id of the alfred_push_data packets and the alfred_request. The number of packets has to be equal to the number of alfred_push_data packets with the same transaction id to accept the transaction as successful.

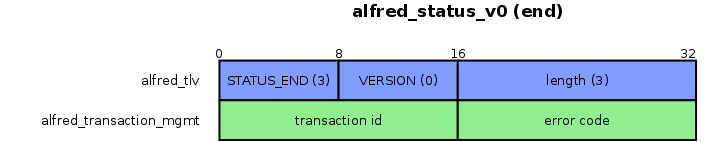

Inform about an error

Slave servers send error messages via unix sockets to clients. This tells the client that the request of data from the master server failed. The transaction id has to be same as the transaction id of the alfred_request packet.

The only currently used error code is 1.

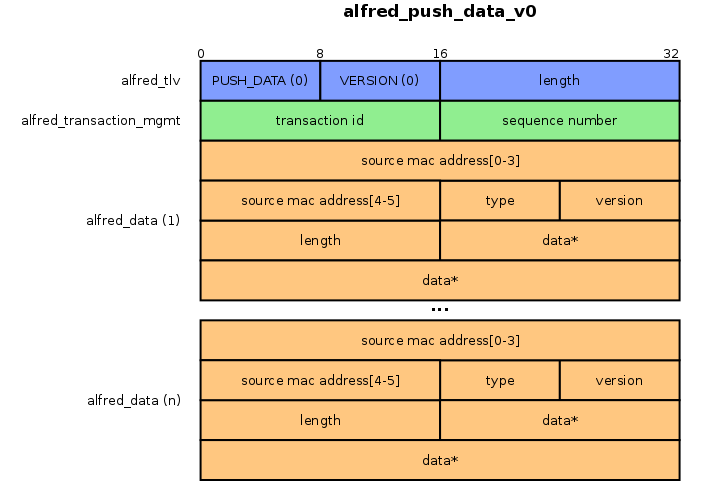

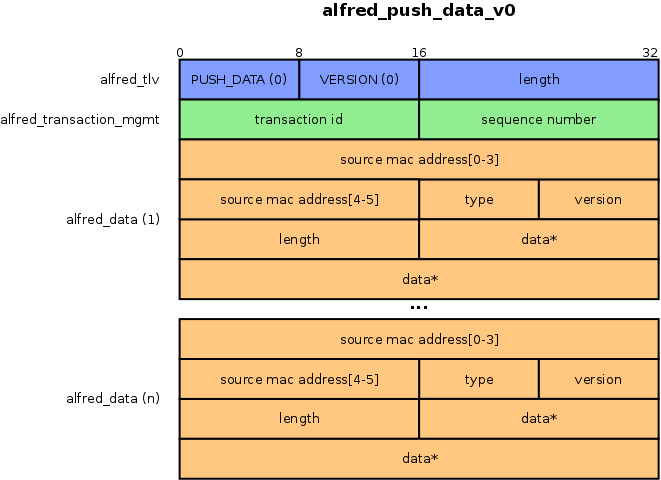

Push data

Push data packets are sent/received by clients to send data via unix sockets to/from servers. Clients send it to store data on a server. Servers send it to clients as answer to alfred_request packets.

Servers sent push data packets via UDP/IPv6 to synchronize data between them. Master server also sent them to slave server as answer to alfred_request packets.

The transaction id has to be unique during the time of the transaction but the same for all packets of one transaction. The sequence number has to be increased for each packet of a transaction.

The payload of the alfred_push_data packet after the transaction information is split into an arbitrary number of alfred_data blocks. Each data block is started with the mac address of the server which initially stored the data. The next part is the TLV header which describes the data part of the alfred_data block. The type and version are user/client defined. The length is the number of bytes for the data stored after the TLV header.

The number of alfred_data blocks in a single alfred_push_data has always to be 1 for communication via unix sockets. The aggregation of multiple data blocks is only allowed for communication via UDP/IPv6.

Alfred allows type from 65 up to 255 as general types for client data. 0 - 64 are reserved (e. g. batadv-vis(1) and alfred-gpsd(2)). The version information has to be evaluated by a client to make sure that it can correctly interpret the data.

One push data packet can be up to 65535 bytes in size. This limits the number of bytes per data block to 65517 bytes.
