OGMv2 Permeability

Goal

Reducing BATMAN V OGMv2 overhead in VPN connected network topologies, by not forwarding all OGMs.

Scenario

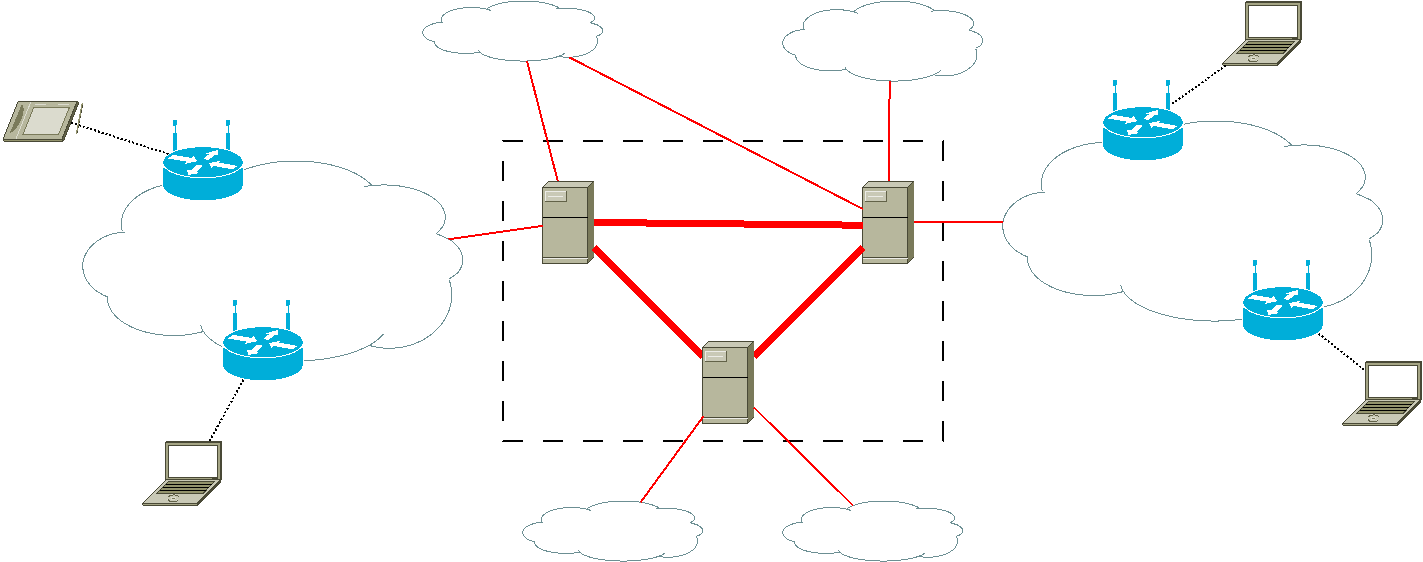

Independent WLAN mesh clouds, interconnected by gateways via VPNs.

Idea

With BATMAN V do not necessarily forward all OGMv2 messages from other nodes, but only forward an OGMv2 if a certain, configurable amount of sequence numbers has passed.

Over the horizon of VPN gateways a timely update should not be that necessary.

Permeability Parameter

batctl <meshif bat0|hardif wlan0> permeability [0-65535]

Permeability OGMv2 TVLV

With BATMAN V it is easier to drop OGMv2 messages than with BATMAN IV. In BATMAN IV it was necessary to forward all OGMs as they were necessary to calculate the link metric.

As is the hard limit for skipped sequence numbers would either be after BATADV_PURGE_TIMEOUT (200s). Or BATADV_TQ_GLOBAL_WINDOW_SIZE (5) sequence numbers, as otherwise if a mesh cloud is connected to two gateways, this could lead to route flapping. With packetloss involved, the potential, useable skipping range would further be reduced: 50% packetloss -> 2.5 sequence numbers.

To allow a wider range of sequence numbers to skip a Permeability OGMv2 TVLV can signalize other nodes on how many sequence numbers were skipped. This in turn allows others nodes receiving this TVLV to adjust their BATADV_TQ_GLOBAL_WINDOW_SIZE for this specific originator.

Examples:

  • Permeablity 0 = no TVLV/default -> global window: 5, 100% forwarded OGMv2's
  • Permeability 5 -> global window: 10, 50% forwarded OGMv2's
  • Permeability 10 -> global window: 15, 33% forwarded OGMv2's

Downsides

...

Implementation

Permeability OGMv2 TVLV Format

    0                   1                   2                   3
    0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
   +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
   | TVLV Type     | TVLV Version  | TVLV Length                   |
   +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
   | Permeability                  | Reserved                      |
   +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  • Permeability: The maxmimum number of sequence numbers that were skipped by nodes along the OGMv2's path.
