Multicast Optimizations – Technical Description

Prior Readings:

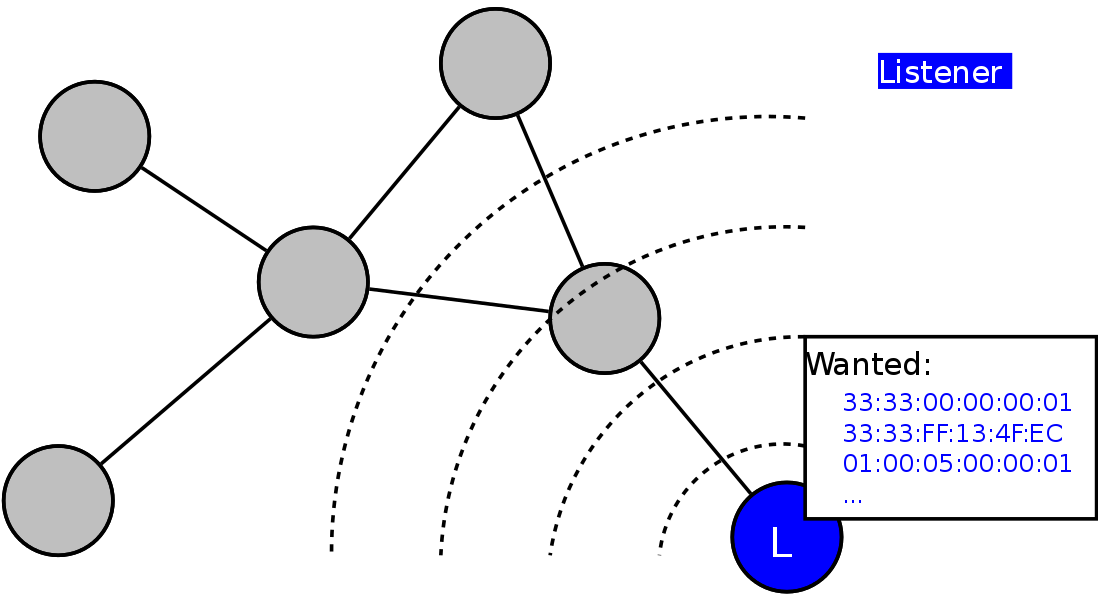

Multicast Listener Announcements

The IPv4/IPv6 multicast code in the Linux kernel keeps track of any of its applications requesting to receive multicast packets for a certain group.

batman-adv queries this local database and announces these so called multicast listeners, more precisely the according multicast MAC addresses, to the rest of the mesh network via the translation table infrastructure.

Multicast TVLV

A node capable of performing Multicast Listener Announcements signalizes this by attaching a Multicast TVLV to its OGMs.

Multicast TVLV format

 0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 | MCAST Flags   |                 Reserved                      |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

BATADV_MCAST_WANT_ALL_UNSNOOPABLES (Bit 0):

Signalizes that this node wants all unsnoopable multicast traffic, that is traffic destined to the all-nodes address for IPv6 (ff02::1) and to link-local addresses for IPv4 (224.0.0.0/24). This is usually the case when a node uses a bridge device on top of bat0 and is therefore unable to detect potential bridged-in listeners.

(not used by listeners yet, but implemented for senders already to ensure backwards compatibility later, see multicast-optimizations-flags for details)

BATADV_MCAST_WANT_ALL_IPV4 (Bit 1):

Signalizes that this node wants all IPv4 multicast traffic. This is usually the case when a node uses a bridge device on top of bat0, has an IGMP querier (no matter if IGMPv2 or IGMPv3) behind it and is therefore not able to reliably determine all of its IGMPv2 listeners.

(not used by listeners yet, but implemented for senders already to ensure backwards compatibility later, see multicast-optimizations-flags for details)

BATADV_MCAST_WANT_ALL_IPV6 (Bit 2):

Signalizes that this node wants all IPv6 multicast traffic. This is usually the case when a node uses a bridge device on top of bat0, has an MLD querier (no matter if MLDv1 or MLDv2) behind it and is therefore not able to reliably determine all of its MLDv1 listeners.

(not used by listeners yet, but implemented for senders already to ensure backwards compatibility later, see multicast-optimizations-flags for details)

Bits 3 to 7:

reserved for future extensions

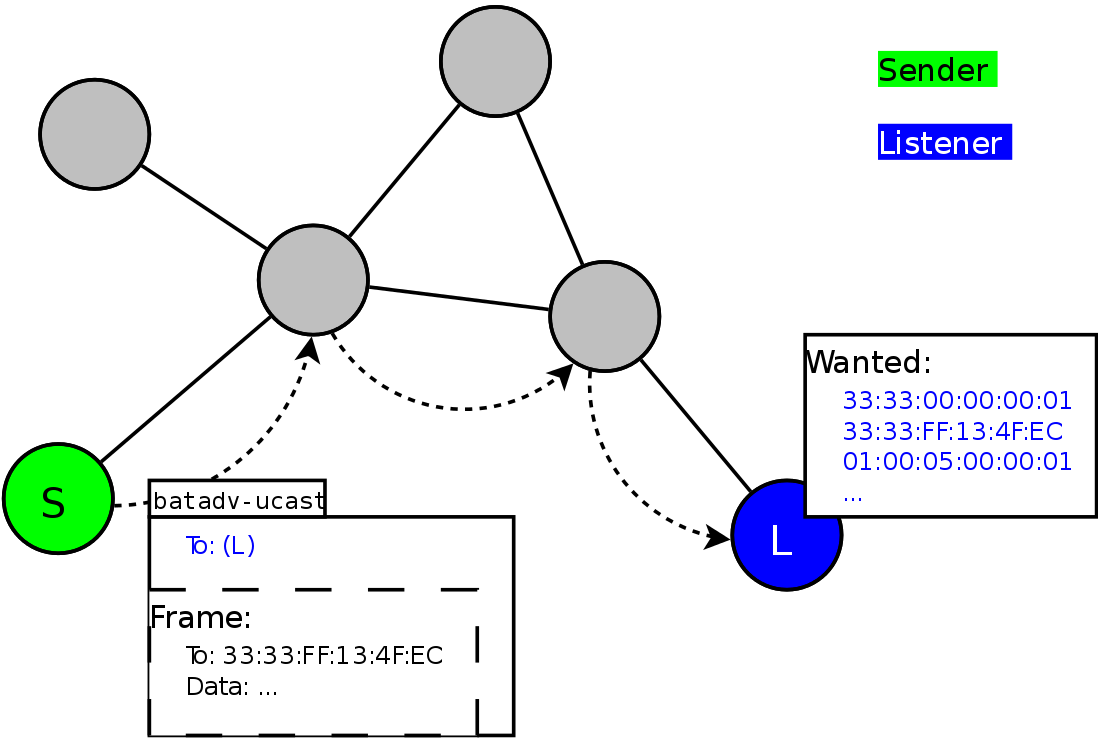

Multicast Sender

Optimization for IPv4 or IPv6 multicast packets is performed by considering a few special cases. First, the number of nodes interested in a group is counted. Interest has been announced by either including the multicast group in TT entries, or setting the BATADV_MCAST_WANT_ALL_IPV4 or BATADV_MCAST_WANT_ALL_IPV6 flags or the BATADV_MCAST_WANT_ALL_UNSNOOPABLES flag in case of unsnoopable ranges in the Multicast TVLV flag.

If the total number of nodes interested in a group is:

  • ... 0, then this frame can be safely dropped.
  • ... 1, then this frame is encapsulated in and forwarded via a batman-adv unicast packet to the according destination.
  • > 1, then this frame is encapsulated in a batman-adv broadcast packet and forwarded via classic flooding to all nodes.

The latter case is the general fallback to broadcast, which is also used when the the multicast optimization is turned off.

Handling rules depending on multicast address

Depending on the IP destination of the multicast packet and the flags of other nodes, there are various limitations and exceptions. If multicast optimization is not supported for whatever reason, the packets will be sent as broadcast as a fallback solution.

address range address family
IPv4 IPv6
all nodes link-scope supported without bridges¹.
Example: 224.0.0.1 (all nodes)
supported without bridges¹.
Example: ff02::1 (all nodes)
link-local
(excl. all nodes addr.)
supported without bridges¹.
Example: 224.0.0.251 (mDNS)
supported².
Example: ff12::39 (locally administrated)
routable support planned³.
Example: 239.1.2.3 (locally administrated)
support planned³.
Example: ff0e::101 (NTP)

¹: These addresses cannot be considered for optimization towards nodes which have a bridge interface on top of their batman interface as they are not snoopable. See multicast-optimizations-flags for details.

²: In bridged scenarios, an IGMP/MLD querier needs to be present in the mesh. Also, a 3.17 kernel or newer is required.

³: Routable multicast addresses are not supported yet. See multicast-optimizations-tech for details.

For details on IPv4 and IPv6 multicast address ranges check out this detailed article on Wikipedia.

Routable multicast addresses

For routable multicast addresses, further consideration has to be given: The according multicast packets not only need to be forwarded to any multicast listener on the local link, but to any multicast router, too. Otherwise off-link listeners, which are only reachable via a layer 3 multicast router, would not receive these multicast packets anymore. To be on the safe side, batman-adv currently simply floods these address ranges. To support these address ranges later, too, Multicast Router Discovery needs to be implemented in batman-adv (which was not done yet).

Limitations

  • groups with two or more listeners don't get optimized
  • the whole mesh must have multicast support enabled
  • optimization for traffic of scope greater than link-local (routable addresses) is not supported yet
  • optimization for link-local IPv4 (224.0.0.0/24) or all-nodes IPv6 multicast (ff02::1) is only done if no node announces BATADV_MCAST_WANT_ALL_UNSNOOPABLES, that is no node configures a bridge on batman-adv.
  • high multicast join/leave latency in setups with slow OGM intervals
  • no awareness for source-specific multicasts
  • multcast packets over VLANs are always flooded

Next Steps / Roadmap

  • optimization for groups with two or more members:
    • many-to-some: implement batman-adv multicast packet type supporting a list of destination addresses (to reduce ICMPv6 overhead like Neighbor Solicitation Messages, Router Solicitation Messages, MLD Reports, ...)
    • some-to-many / streaming: implement path tracking and use these patches (see Multicast-ideas-updated)
  • implement Multicast Router Discovery to support scopes greater than link-local, too
  • implement some faster listener roaming mechanism for bridged in hosts (for instance announce (multicast-address, source address) pairs and use general TT roaming mechanism)
  • perform multicast listener adition/reduction via TT immediately instead of every OGM interval to reduce join/leave latency in setups with a slow OGM interval
  • implement source-specific multicast in Linux bridge and batman-adv
  • multicast TT announcements and forwarding have to be performed per VLAN
  • ...

Further Readings
